XGC130 Murah Hydraulic Crawler Crane Untuk Berbagai Aplikasi
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | XCMG |
| Nomor model: | XGC130 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | Satu derek |
|---|---|
| Harga: | Negotiable Price |
| Kemasan rincian: | Pengemasan sesuai dengan kebutuhan pelanggan |
| Waktu pengiriman: | Menurut konfirmasi pesanan |
| Syarat-syarat pembayaran: | L/C,T/T |
| Menyediakan kemampuan: | Pasokan sesuai dengan kebutuhan pelanggan |
|
Informasi Detail |
|||
| Dimensi transportasi: | 15.5mx 3.5mx 3.5m | Kekerasan: | 52-58HRC |
|---|---|---|---|
| Kecepatan Perjalanan: | 0-1.6m | Lacak Lebar: | 1,5 meter |
| Kecepatan ayunan: | 0-2.1RPM | Merek Pompa Hidrolik: | Merek TERATAS |
| Panjang Boom: | 60 meter | Sistem kontrol: | Hidraulik |
| Kondisi: | Kondisi kerja yang baik | Kemampuan Menanjak Maks: | 40% |
| Menyoroti: | XGC130 Hydraulic Crawler Crane,Crane crawler hidrolik yang terjangkau,XGC130 digunakan crawler crane untuk dijual |
||
Deskripsi Produk
Crane Crawler Hidrolik Murah Untuk Berbagai Aplikasi

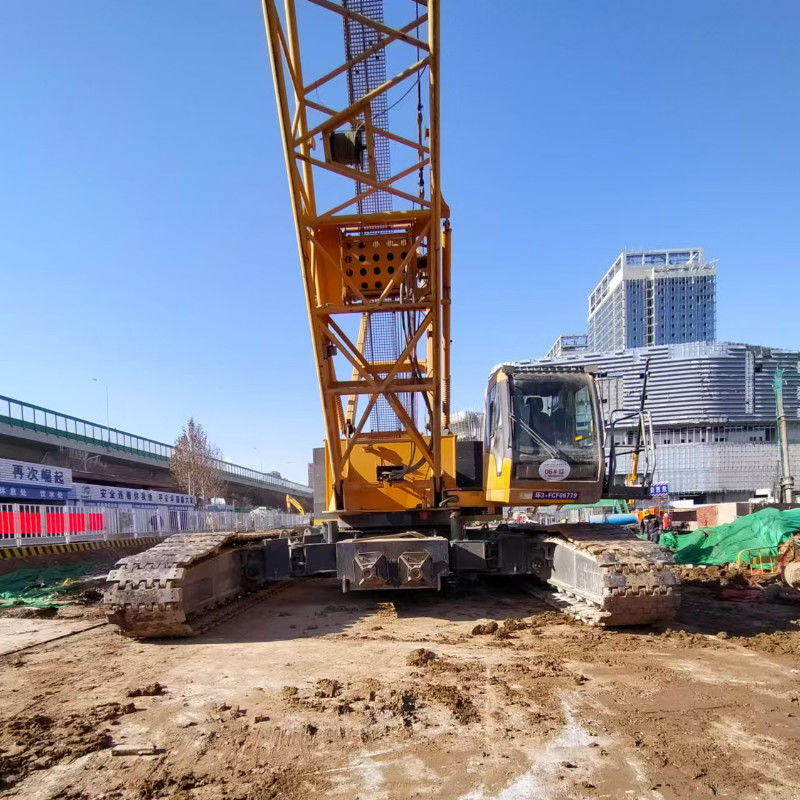

XGC130 Hydraulic crawler crane
Kinerja angkat
Diagram rentang kerja boom utama
Diagram rentang kerja boom utama
Tabel beban boom utama
Tabel beban boom utama (unit beban t)
|
|
Panjang boom ((m) |
||||||||||
|
Radian (m) |
16 |
19 |
22 |
25 |
28 |
31 |
34 |
37 |
40 |
43 |
46 |
|
4.6 |
135 |
|
|
|
|
|
|
|
|
|
|
|
5 |
132 |
130 |
|
|
|
|
|
|
|
|
|
|
6 |
120 |
119.5 |
118 |
115.7 |
|
|
|
|
|
|
|
|
7 |
101 |
100.5 |
98.7 |
98.5 |
98.5 |
87.9 |
|
|
|
|
|
|
8 |
86.8 |
86.7 |
86 |
84.4 |
83 |
81.4 |
79.8 |
75.8 |
|
|
|
|
9 |
75.1 |
74.2 |
73 |
71.8 |
70.6 |
69.4 |
68.2 |
67 |
66 |
64.8 |
|
|
10 |
64 |
63.8 |
63.3 |
62.3 |
61.4 |
60.4 |
59.4 |
58.5 |
57.5 |
56.6 |
54.9 |
|
12 |
49.1 |
49.1 |
49 |
49 |
48.6 |
47.8 |
47.1 |
46.3 |
45.7 |
45 |
45 |
|
14 |
39.7 |
39.7 |
39.7 |
39.5 |
39.5 |
39.4 |
38.8 |
38.2 |
37.8 |
37.2 |
37.2 |
|
16 |
|
33 |
33.2 |
33.2 |
33.2 |
33 |
32.9 |
32.4 |
32 |
31.4 |
31.2 |
|
18 |
|
|
28.3 |
28.3 |
28.3 |
28.1 |
28 |
27.9 |
27.6 |
27.2 |
27.1 |
|
20 |
|
|
24.6 |
24.5 |
24.6 |
24.5 |
24.3 |
24.2 |
24.2 |
23.8 |
23.8 |
|
22 |
|
|
|
21.6 |
21.6 |
21.6 |
21.3 |
21.2 |
21.2 |
21 |
20.9 |
|
24 |
|
|
|
|
19.2 |
19.1 |
18.9 |
18.8 |
18.8 |
18.7 |
18.4 |
|
26 |
|
|
|
|
|
17.1 |
16.9 |
16.8 |
16.8 |
16.7 |
16.4 |
|
28 |
|
|
|
|
|
|
15.2 |
15.1 |
15.1 |
15 |
14.8 |
|
30 |
|
|
|
|
|
|
13.8 |
13.6 |
13.6 |
13.5 |
13.4 |
|
32 |
|
|
|
|
|
|
|
12.5 |
12.5 |
12.3 |
12.1 |
|
34 |
|
|
|
|
|
|
|
|
11.3 |
11.1 |
11 |
|
36 |
|
|
|
|
|
|
|
|
|
10.2 |
10.1 |
|
38 |
|
|
|
|
|
|
|
|
|
9.4 |
9.2 |
|
40 |
|
|
|
|
|
|
|
|
|
|
8.5 |
|
Berat konter |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
|
Perbesar |
14 |
14 |
12 |
11 |
10 |
9 |
8 |
7 |
6 |
6 |
5 |
|
|
Panjang boom ((m) |
|||||||||
|
Radian (m) |
49 |
52 |
55 |
58 |
61 |
64 |
67 |
70 |
73 |
76 |
|
10 |
54.5 |
|
|
|
|
|
|
|
|
|
|
12 |
45 |
45 |
44.3 |
41.7 |
36.5 |
|
|
|
|
|
|
14 |
37.2 |
37.1 |
37 |
36.5 |
35.6 |
30.6 |
28.4 |
23.9 |
19.9 |
|
|
16 |
31.1 |
31 |
31 |
30.7 |
30.3 |
29.9 |
28.4 |
23.9 |
19.4 |
16.7 |
|
18 |
27.1 |
27.1 |
26.8 |
26.4 |
26 |
25.8 |
26.2 |
22.4 |
18.9 |
16.2 |
|
20 |
23.7 |
23.7 |
23.4 |
23 |
22.6 |
22.3 |
22.7 |
20.8 |
18.2 |
15.7 |
|
22 |
20.6 |
20.6 |
20.5 |
20.2 |
20 |
19.7 |
19.4 |
19.1 |
17.6 |
15.2 |
|
24 |
18.3 |
18.3 |
18.1 |
17.9 |
17.7 |
17.5 |
17.2 |
16.8 |
16.7 |
14.6 |
|
26 |
16.3 |
16.1 |
16 |
15.9 |
15.6 |
15.6 |
15.4 |
15 |
14.8 |
14.1 |
|
28 |
14.6 |
14.6 |
14.4 |
14.2 |
14 |
13.9 |
13.8 |
13.5 |
13.2 |
12.9 |
|
30 |
13.1 |
13.1 |
13 |
12.7 |
12.6 |
12.5 |
12.3 |
12.1 |
11.9 |
11.5 |
|
32 |
11.9 |
11.8 |
11.7 |
11.5 |
11.3 |
11.3 |
11.1 |
10.9 |
10.7 |
10.3 |
|
34 |
10.9 |
10.7 |
10.6 |
10.5 |
10.2 |
10.1 |
10 |
9.7 |
9.7 |
9.3 |
|
36 |
10 |
9.8 |
9.7 |
9.4 |
9.3 |
9.2 |
9 |
8.8 |
8.8 |
8.4 |
|
38 |
9 |
9 |
8.9 |
8.6 |
8.4 |
8.4 |
8.2 |
8 |
7.8 |
7.6 |
|
40 |
8.2 |
8.2 |
8.1 |
7.8 |
7.7 |
7.6 |
7.4 |
7.2 |
7.2 |
7 |
|
42 |
7.6 |
7.6 |
7.4 |
7.2 |
7.1 |
6.9 |
6.8 |
6.5 |
6.5 |
6.35 |
|
44 |
|
6.9 |
6.8 |
6.5 |
6.4 |
6.3 |
6.3 |
6 |
5.9 |
5.75 |
|
46 |
|
6.4 |
6.3 |
6 |
5.9 |
5.9 |
5.7 |
5.5 |
5.3 |
5.2 |
|
48 |
|
|
5.7 |
5.6 |
5.3 |
5.3 |
5.2 |
4.9 |
4.9 |
4.75 |
|
50 |
|
|
|
5.1 |
4.9 |
4.9 |
4.8 |
4.5 |
4.4 |
4.3 |
|
52 |
|
|
|
|
4.5 |
4.4 |
4.4 |
4.2 |
4 |
3.9 |
|
54 |
|
|
|
|
|
4.2 |
4 |
3.8 |
3.8 |
3.55 |
|
56 |
|
|
|
|
|
3.8 |
3.6 |
3.5 |
3.4 |
3.15 |
|
58 |
|
|
|
|
|
|
3.4 |
3.1 |
3.1 |
2.9 |
|
60 |
|
|
|
|
|
|
|
2.8 |
2.7 |
2.5 |
|
62 |
|
|
|
|
|
|
|
|
2.4 |
2.25 |
|
64 |
|
|
|
|
|
|
|
|
2.2 |
1.95 |
|
66 |
|
|
|
|
|
|
|
|
|
1.7 |
|
Berat konter |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
|
Perbesar |
5 |
5 |
4 |
4 |
4 |
3 |
3 |
3 |
2 |
2 |
